Big TX2

Junior - PY2TD

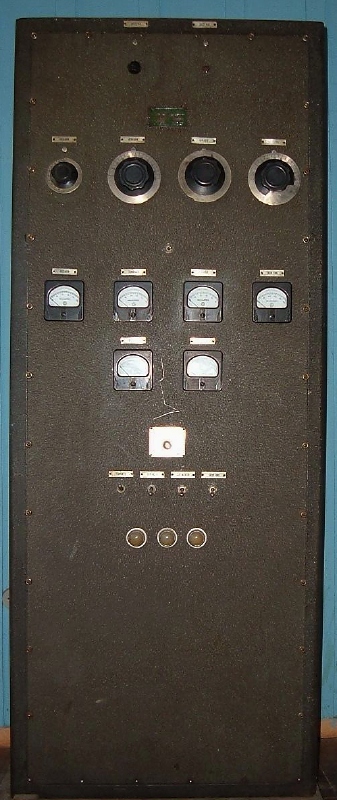

Here is an old homebrew transmitter now in Junior's station. The tube complement is two 805 and two 813 running 1850 Volts at 400 milliAmps. It operates 10 to 80 meters with crystal or VFO by Geloso.


Spring 2010
