Series Modulated 807

by Bob, WB9ECK

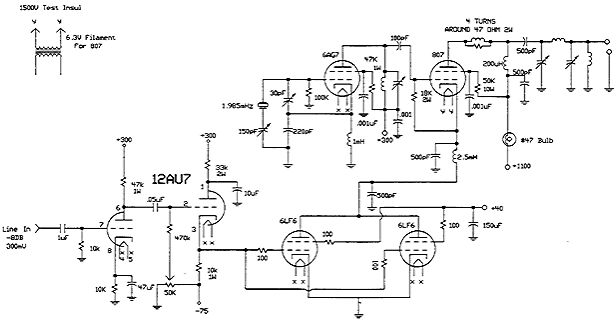

Schematic



Now you can have a nice small 25 watt transmitter/exciter requiring only four tubes and NO modulation transformer. Hi-fi and no iron required. What's not to like?!? The transmitter output is adjustable from zero to twenty five watts output with 100% modulation. If you run about 15 watts the positive peaks will be somewhere around 115% while the negative peaks remain below
100%.  Works great for driving a grounded grid linear.

Here's a high resolution PDF version of the schematic, suitable for printing.

Check out some photos of the rig.

Front

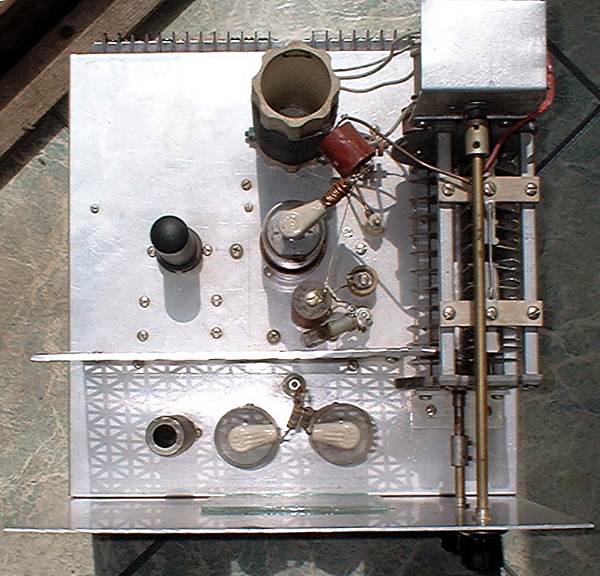

Top

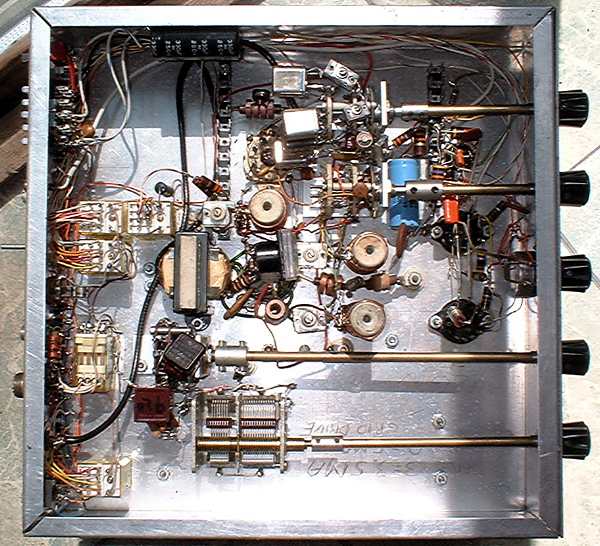

Bottom




Back to the General Technical Page





3 September 2005
